DEUTZ-FAHR TRACTORS NEW ZEALAND: GERMAN ENGINEERING AT ITS BEST

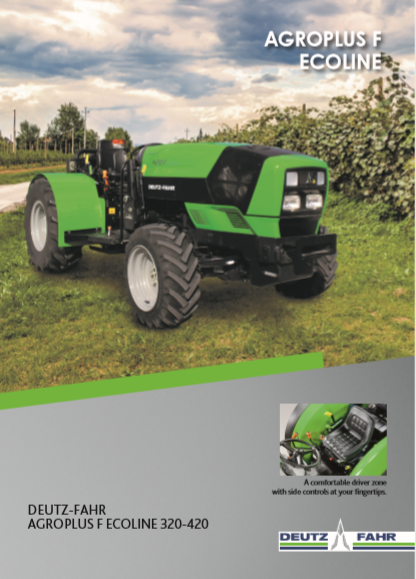

Agroplus F Ecoline

Compact Dimensions and Impressive Performance.

Created for specialist applications and offered with a wide variety of implements, the Agroplus F Ecoline is a functional tractor satisfying the need for practicality and simplicity typical of the small fruit farm or a fruit farm approaching mechanisation for the first time. And in spite of its outstanding performance, this is a tractor that will ensure a rapid return on the investment made.

Essential in every detail, the Agroplus F Ecoline features a new single-piece hood and a lower driving position, and is extremely nimble and manoeuvrable.

Engine

When optimised performance is the key to durability.

Powered by 3 or 4 cylinder SDF Series 1000 Tier III engines with simple turbo or turbo intercooler forced induction and an electronic governor system, the Agroplus F Ecoline is reliable and will stand up to the stress and strain of work for years to come. The engine features an innovative injection system with a single pump per cylinder, to deliver fuel instantaneously at very high injection pressures, optimising both performance and consumption. But that's not all. A button on the instrument panel saves and sets engine speed. This speed is then maintained by the electronic control unit, which continuously monitors and adjusts engine performance to ensure constant, uniform operation.

Transmission

Whether for transport or specialised applications, a transmission like this knows exactly what you need.

Optimised spacing between gear ratios for maximum productivity: this is the goal of the mechanical transmission of the Agroplus F Ecoline, which has been engineered for efficiency. Combining the 5-speed synchronised mechanical with the underdrive gear and super creeper gear increases the number of ratios available to 30+15. So while the Agroplus F Ecoline can reach a top speed of 40 Km/h, shortening transfer and transport times, when equipped with the super creeper gear it offers a choice of 10 speeds within a speed interval from 0.21 to 1.02 Km/h, making it the ideal choice for working with stone crusher or ditch digger implements. With integral braking and disc brakes on all 4 wheels, the Agroplus F Ecoline also offers superlative active and passive safety.

Hydraulics

Class-beating manoeuvrability even in the most extreme conditions.

With a 60° steering angle, the Agroplus F Ecoline is an extraordinarily manoeuvrable tractor. With its optimised chassis configuration and axles, and the design of the front mount and hood, the Agroplus F Ecoline has been specifically conceived for maximum agility even in the most challenging conditions. But that's not all: the rear lift with a capacity of 3,000 Kg, which makes it possible to use very heavy implements, sets the Agroplus F Ecoline way above any other tractor in its class. The PTO has also been conceived to make full use of all the power necessary, especially when using implements such as atomisers, side shoot removers and inter-row cultivators. The synchronised PTO, on the other hand, is ideal for transport applications on steep gradients and towing trailers with driven axles.

Operators Station

Designed for a comfortable, pleasant driving experience

Comfort and space are also maximised in the design of the Agroplus F Ecoline, with its uncluttered, roomy and comfortable driving area. The transmission levers are on the right hand side of the seat, so they do not hamper the driver climbing into and out of the seat. The suspended pedals and adjustable steering wheel ensure a perfect driving position, while special deflectors in clear polycarbonate protect the driver from dirt and noise, while offering an unimpeded view of the front wheel
