Agrolux 85

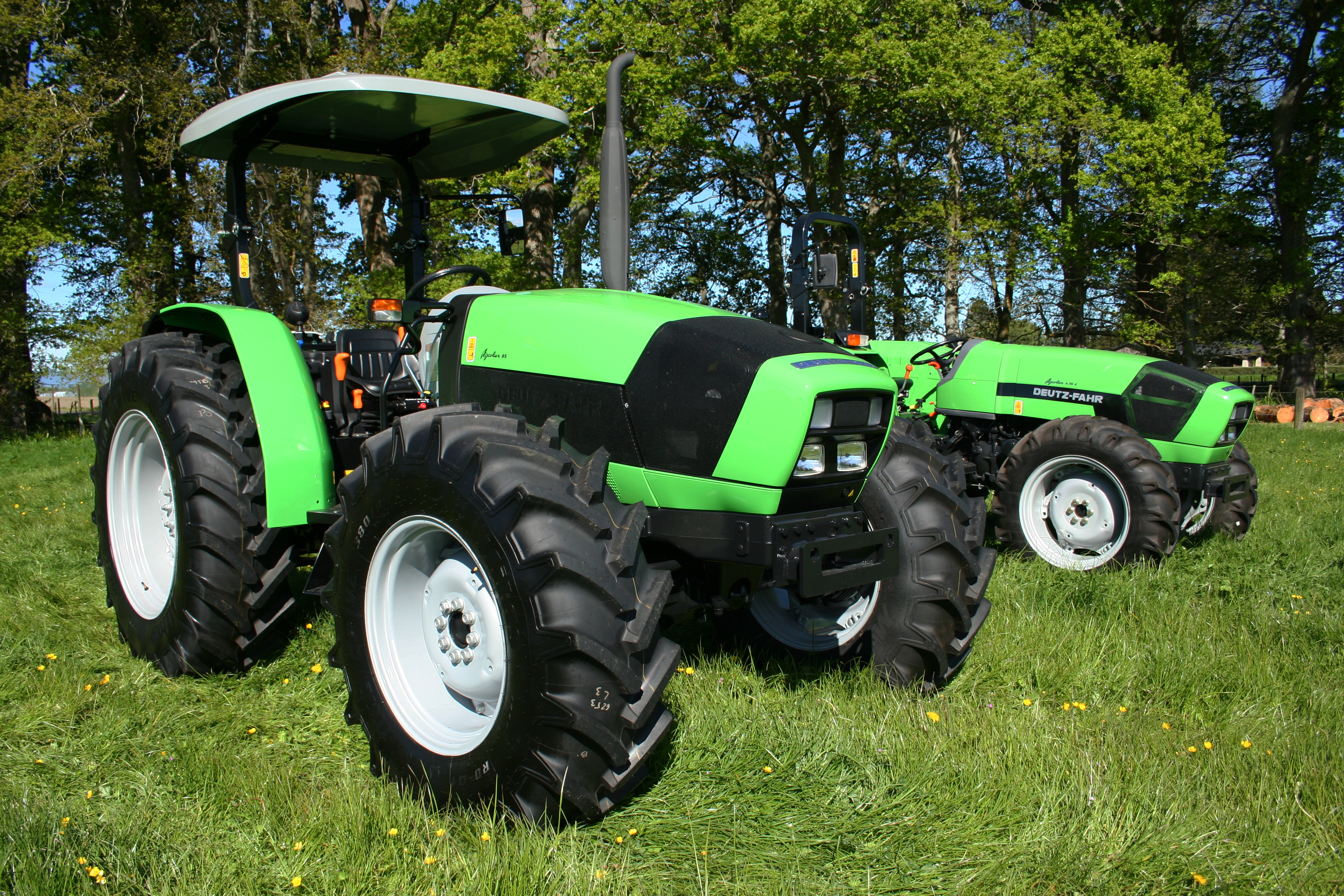

The Agrolux series are simple, efficient and reliable multi-role tractors, conceived to deliver the best performance and productivity in the 80 to 100 hp class. The range consists of two models powered by an SDF 1000 Series engine. While functional, these tractors also boast advanced design and technology and feature bespoke solutions such as the injection-moulded single piece cowl in sound-absorbing resin.

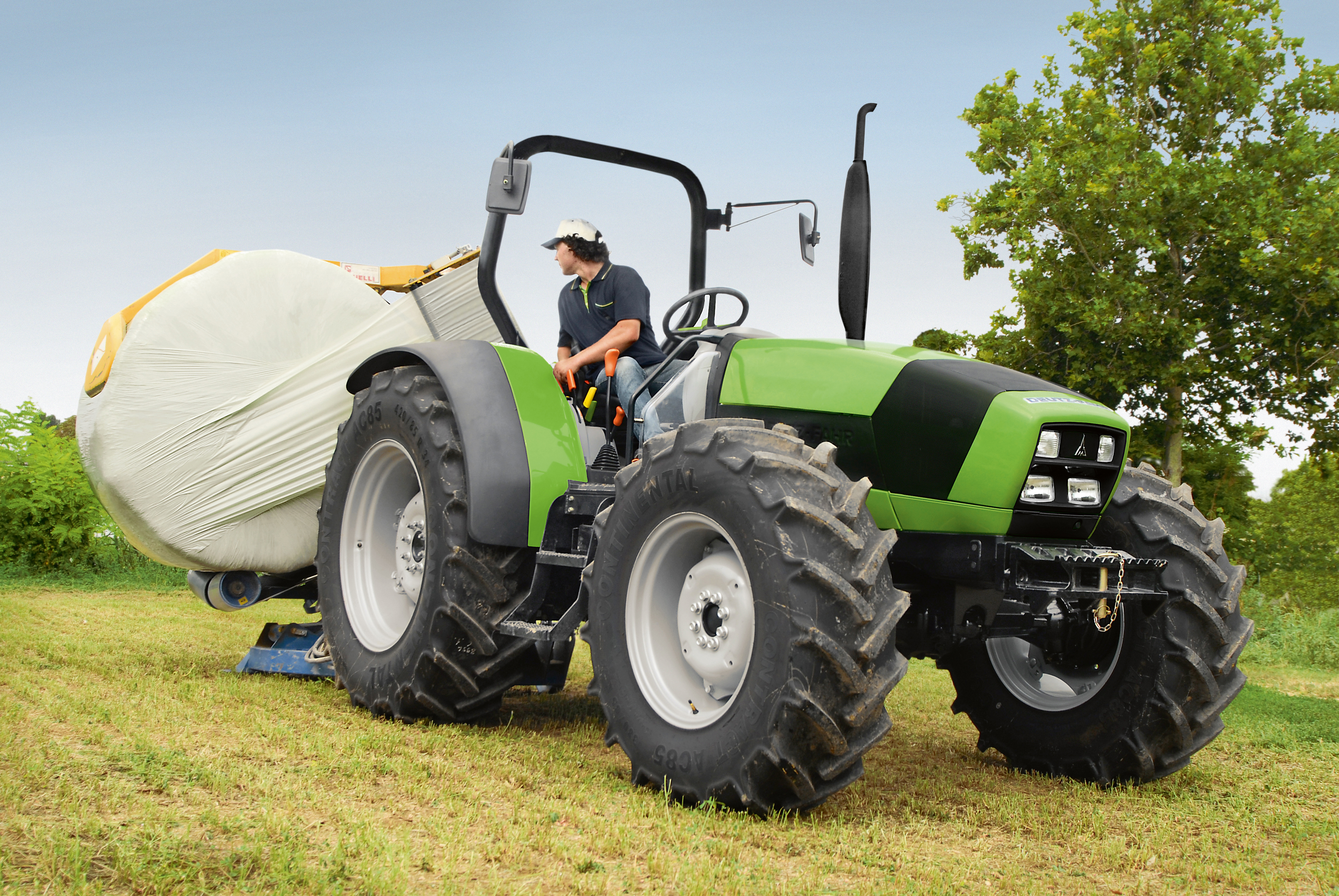

These tractors are multi-capable machines offering the perfect combination of performance, reliability and low running costs. Notable for their distinct compactness and flexibility, the Agrolux model will prove more than useful in a wide variety of work situations, general yard duties, haymaking, livestock management and light tillage.

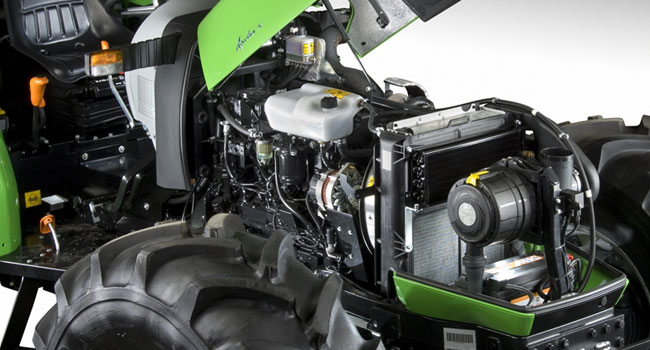

Engine
Agrolux models are equipped with the latest generation of SDF series 1000 Tier I 4-cylinder liquid cooled engine offering consistently high levels of Torque efficiency with low fuel consumption. Setting these engines apart are a mixed oil/water cooling system and a mechanical high pressure injection system. This injection system uses an innovative solution with individual dedicated injection pumps for each cylinder, for superior performance and reliability. This technology is far more advanced than conventional rotary or in-line pumps. The Agrolux 85 models are equipped with naturally aspirated engines producing a maximum of 85 hp (2000/25 EC) respectively, while the 95 versions feature turbocharged engines with maximum outputs of 92 hp (2000/25 EC) respectively. With a compact engine layout and a potent cooling system with generous ventilation grilles, Agrolux tractors can be used without difficulty even in very hot climates. And for use in very dusty conditions, all the models in the range may be equipped with a cyclone pre-filter which increases the durability of the main air filter and, as a result, increases engine efficiency. An important feature of the SDF engine is their high torque rise: this ensures exceptional lugging power and allows the machine to overcome even the most difficult operating conditions with ease.

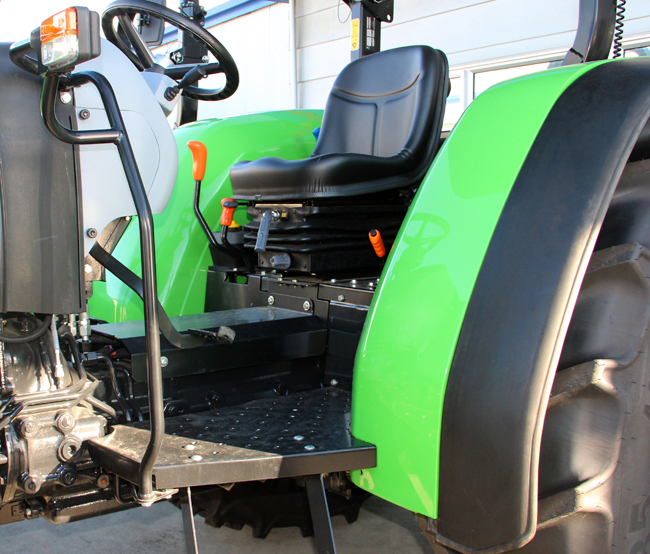

Transmission
Offering superlative simplicity and reliability, the transmission equipped in the Agrolux for the New Zealand market is extremely versatile and features intelligently spaced gear ratios, to cater for a vast range of different applications. The agrolux transmission offers 20 forward and 20 reverse speeds broken down into 5 gears with 4 mechanical ranges. A creep set is included within this transmission making it extremely versatile for precision applications whilst still offering a 40 km/h road speed.

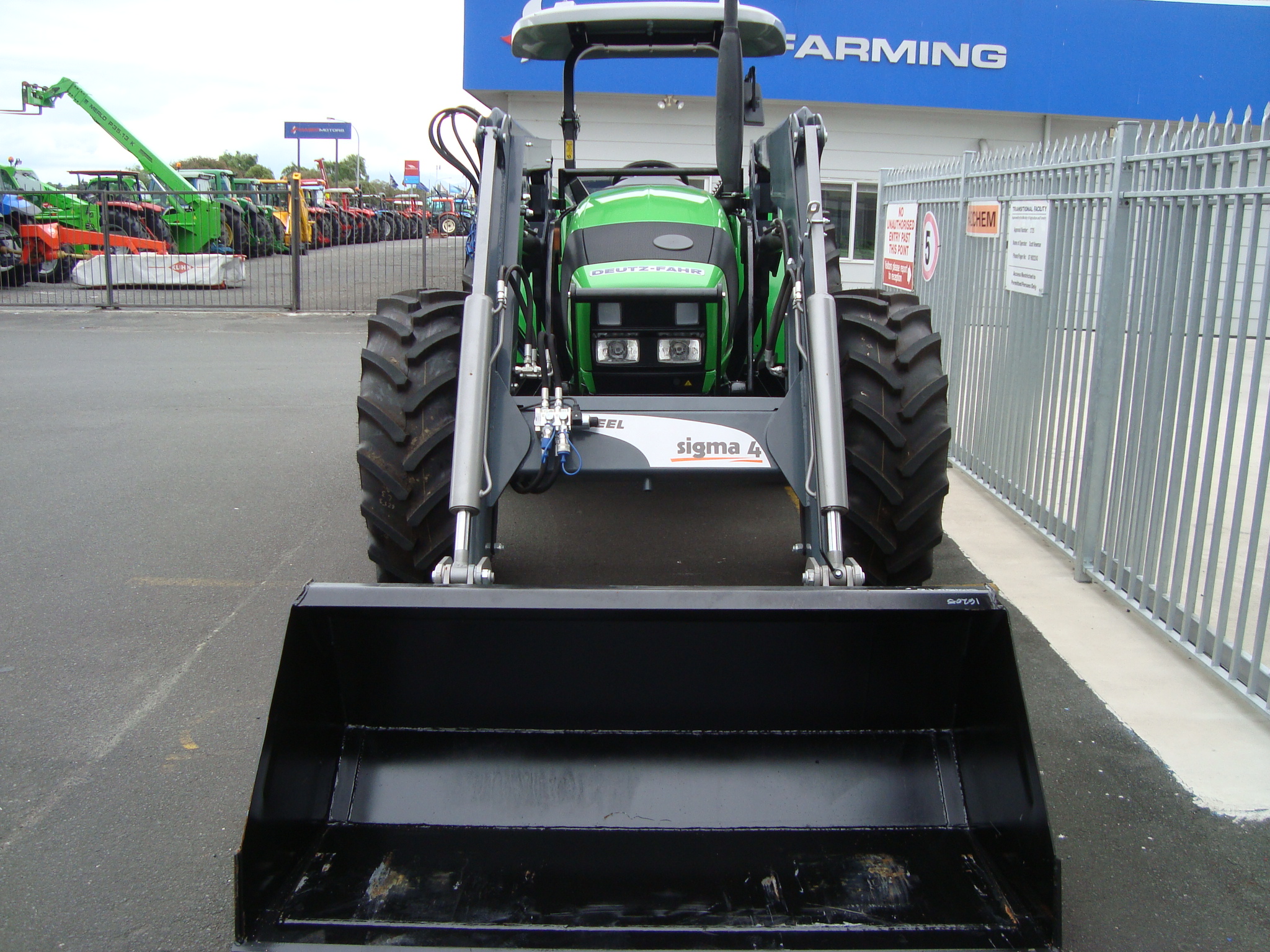

The synchromesh transmission makes gear changes on the move very easy and with the convenient forward / reverse synchromesh shuttle, the tractor is very manoeuvrable and ideal for front end loader work. The tractor is equipped with fully hydrostatic independent braking on all 4 wheels for great stopping ability and to ensure maximum safety even in the most adverse terrain. The three transmission levers are situated to the right of the driver for immediate, intuitive operation without impeding access to and from the platform.
Operators Station

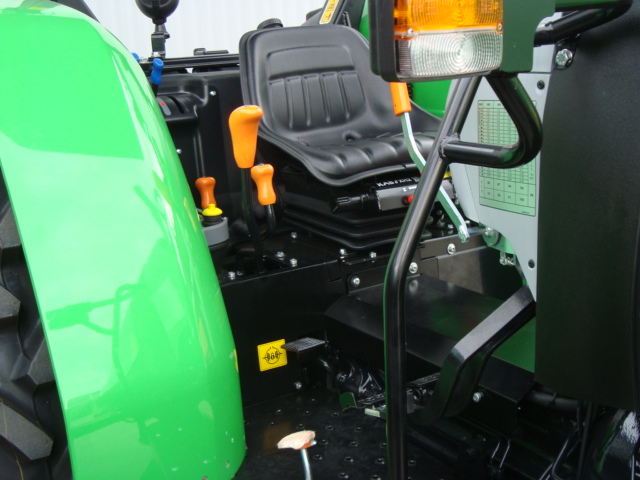

The Agrolux range features an ergonomic operator platform that can be accessed from either side of the tractor. Features like pendant-style pedals, ergonomically correct shift levers and an easy view of the instrument panel gives the operator all the information needed for operating the vehicle at a glance.

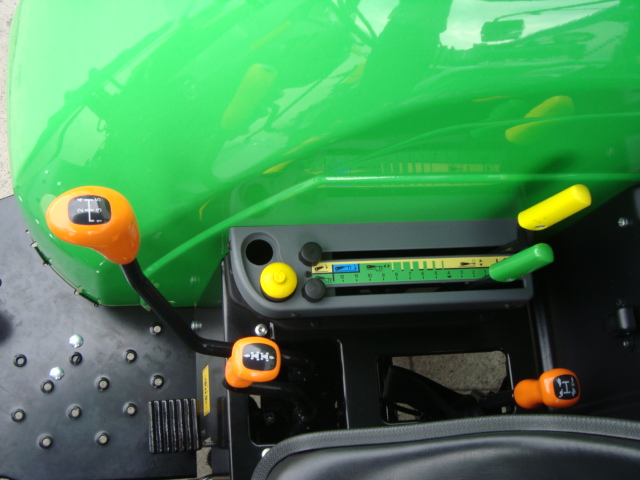

The driver area is spacious and comfortable, and features intuitive, rationally organised controls and instruments. The main controls are situated to the side of the seat and do not impede driver access to the seat itself. The three transmission control levers, the hydraulic distributor control levers, the mechanical differential lock pedal and the manual throttle are situated on the right hand side, while on the left are the PTO control lever, the front wheel drive engage/disengage selector, the PTO clutch control and the handbrake. The instrumentation includes analogue gauges providing essential information on the operating parameters of the machine (coolant temperature, engine speed, PTO speed and fuel level); as well as an array of familiar warning and indicator lamps (oil pressure, turn indicators and battery charge level). And for maximum safety in the event of a roll-over, the tractor is equipped with sturdy rear two-pillar roll-bar, which folds down partially to facilitate access to areas with limited headroom.

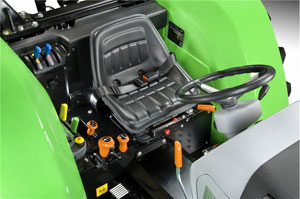

Hydraulics
The hydraulic system equipped on the Agrolux series has a primary gear pump with a maximum capacity of 56 l/min. This pump feeds an open centre circuit (for total compatibility with all hydraulically powered implements), and a secondary pump dedicated exclusively to the hydrostatic steering system. This ensures a light, fluid steering action, and complete functionality even at low running engine speeds. The additional advantage of the separate steering system is that it ensures a consistant and reliable oil flow to the rear auxillary distributors and hydraulic linkage when there is a large draw on the hydraulic circuit. Completing the hydraulic system are two rear distributors as standard and a powerful rear lift with a maximum capacity of 4200 kg. Hydraulic trailer brakes are available as an option.
