DEUTZ-FAHR TRACTORS NEW ZEALAND: GERMAN ENGINEERING AT ITS BEST

4 Series

 If versatility is a priority and you're looking for a tractor with a low weight to power ratio that meets your exacting needs for productivity, the new 4080.4 E model is the perfect answer for you, whatever the task. The 4080.4 E model is equipped with a climate controlled cabin, forward/reverse synchronised shuttle and the easy to use EASYlift three point linkage.

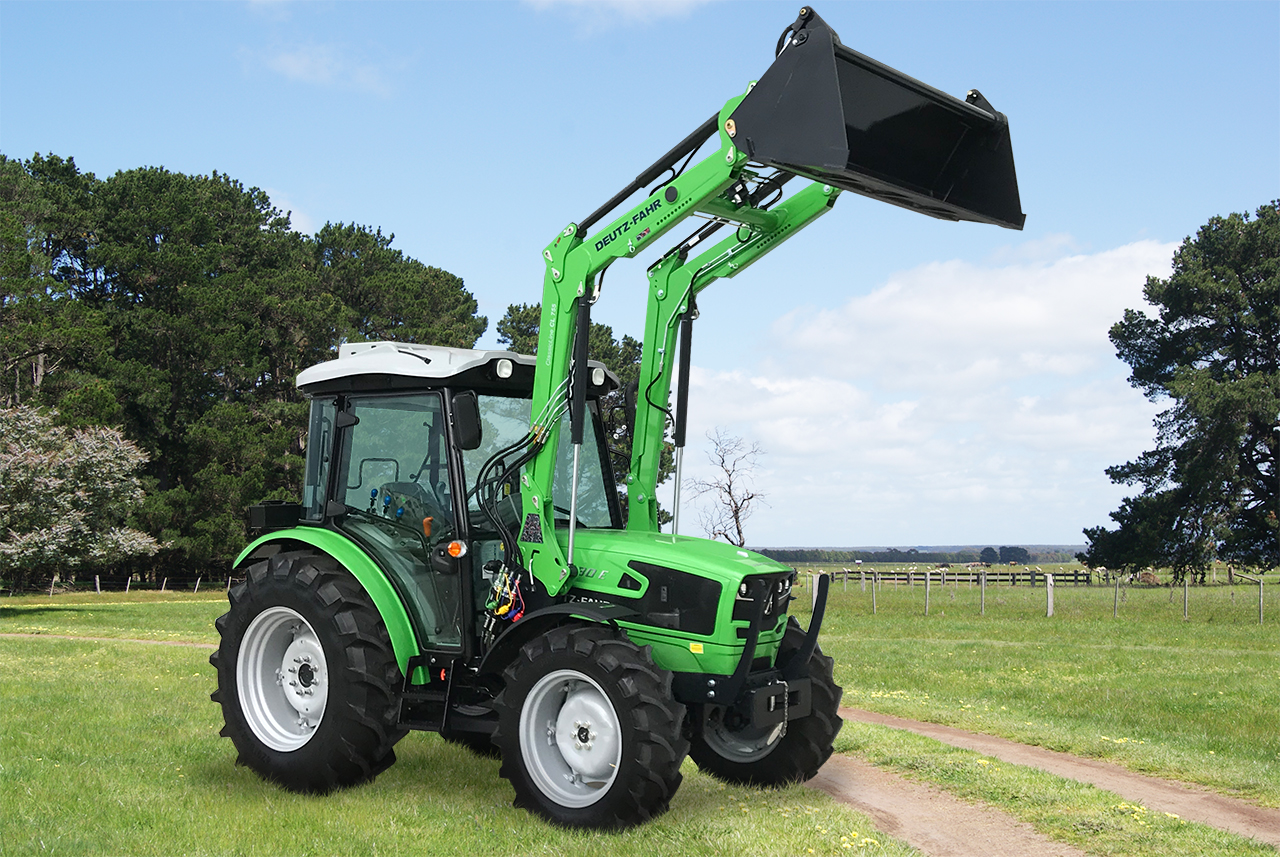

4080 tractor

Engine

Deutz-Fahr 4080.4 E tractors are powered by liquid cooled 4 cylinder turbocharged and intercooled engine with HRT and exhaust gas recirculation systems ensuring compliance with Stage 3A standards. These tractors are an ideal combination of sturdy construction and simplicity. The 4080E models are equipped with an electronic engine governor system which automatically determines the exact quantity of fuel needed in relation to power demand and load in real time to optimise fuel consumption.

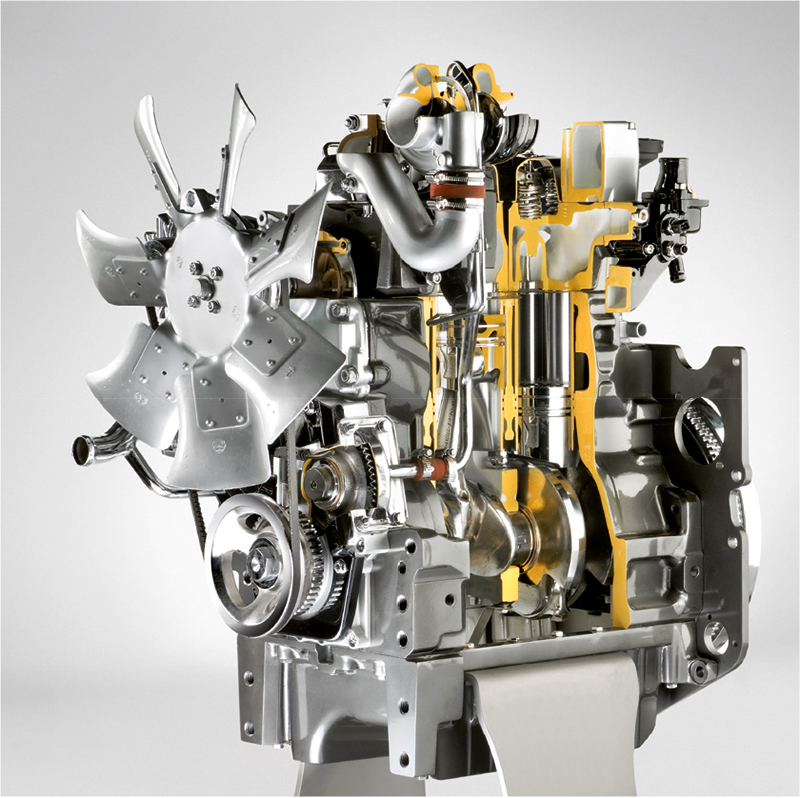

engine pic



Transmission

transmission



The Deutz 4080.4 E tractors are equipped with a transmission offering the ideal ratio for every task.
The 30+15 configuration doing duty on the 4080.4 E consists of a synchronised 5 speed gearbox with 3 work ranges and underdrive, the latter selected from a control integrated in the reverse shuttle lever.
A top speed of  40 Km/h for the model makes road transport tasks quick and simple.

Cabin

The transmission levers (gears and ranges) are on the right of the driver, while the mechanical reverse shuttle lever (which also includes the underdrive selector control) is situated under the steering wheel, for immediate, comfortable operation.

The cabin is spacious and comfortable. Designed specifically for maximum driver comfort, with solutions that drastically reduce vibration and noise.

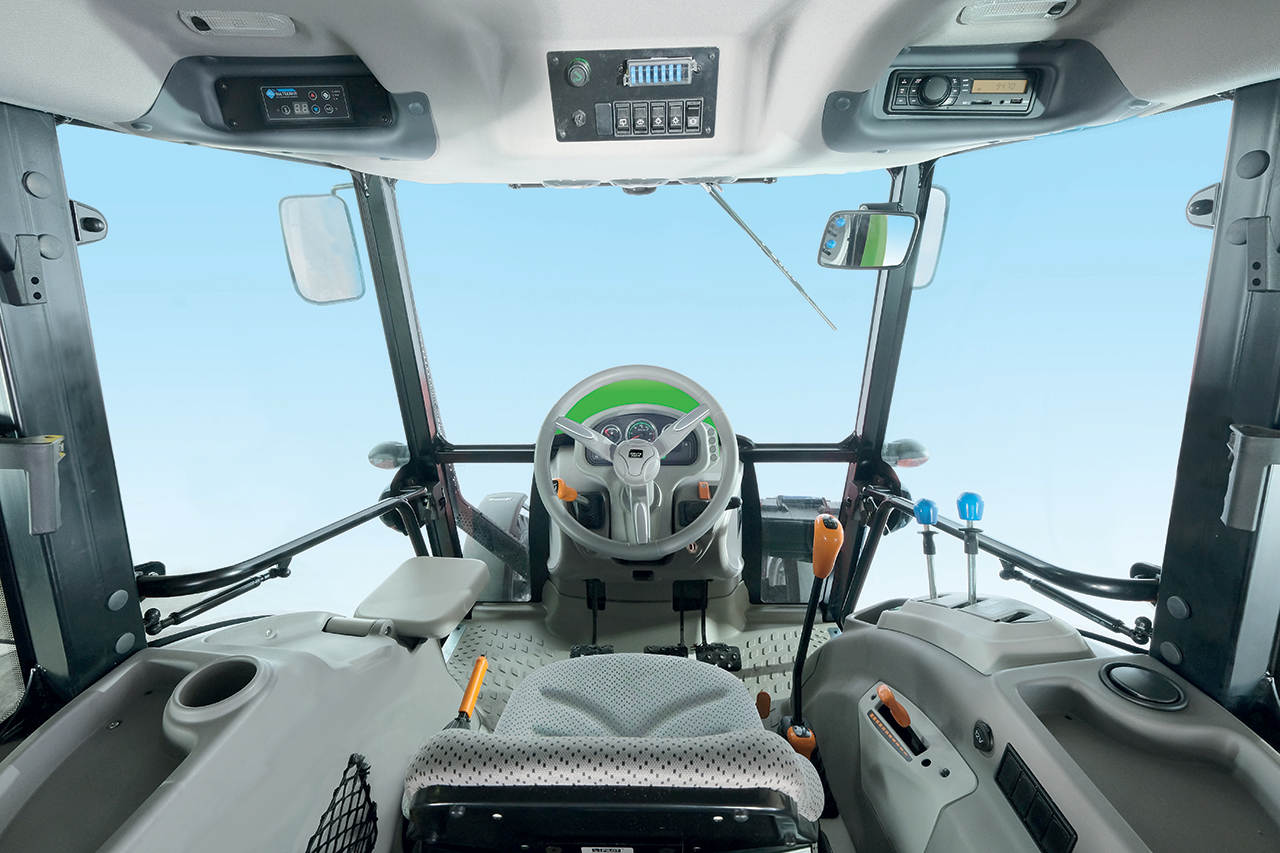

cabin picture



Hydraulics

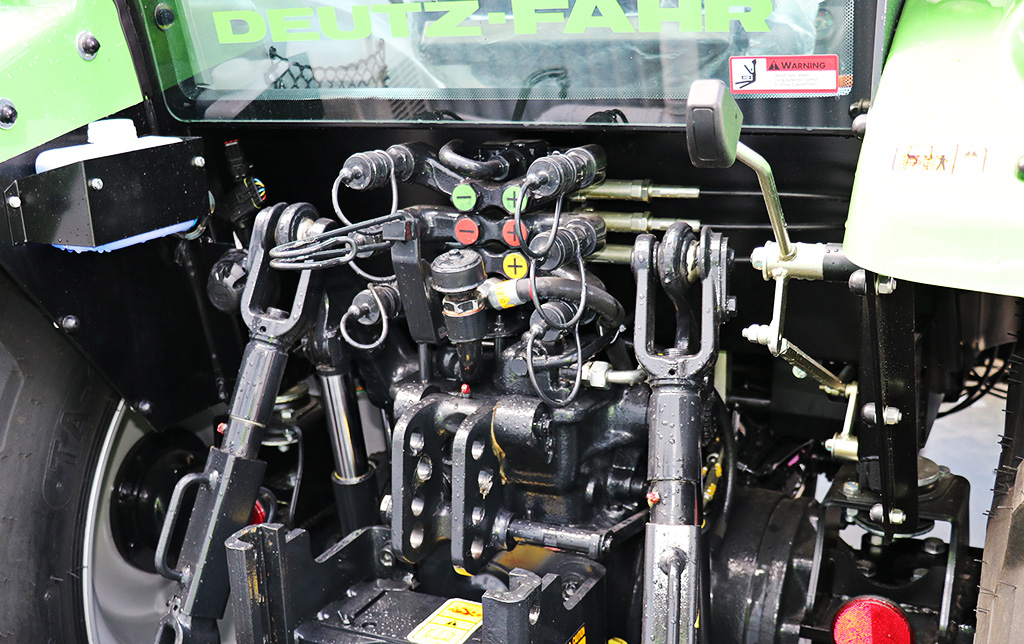

hydraulics



The hydrostatic steering system is fed by an independent pump for smooth, light steering even at low engine speeds. A steering angle of 55°, mechanical position, draft and mixed control modes for the rear lift let you work with total precision with any implement. A hydraulic oil flow rate of 42 l/min and 4 or 6* way distributors ensure accurate control and adjustment of all hydraulic implements. Depending on the model, the lift has a maximum load capacity of up to 3490 Kg (with supplementary external rams).
