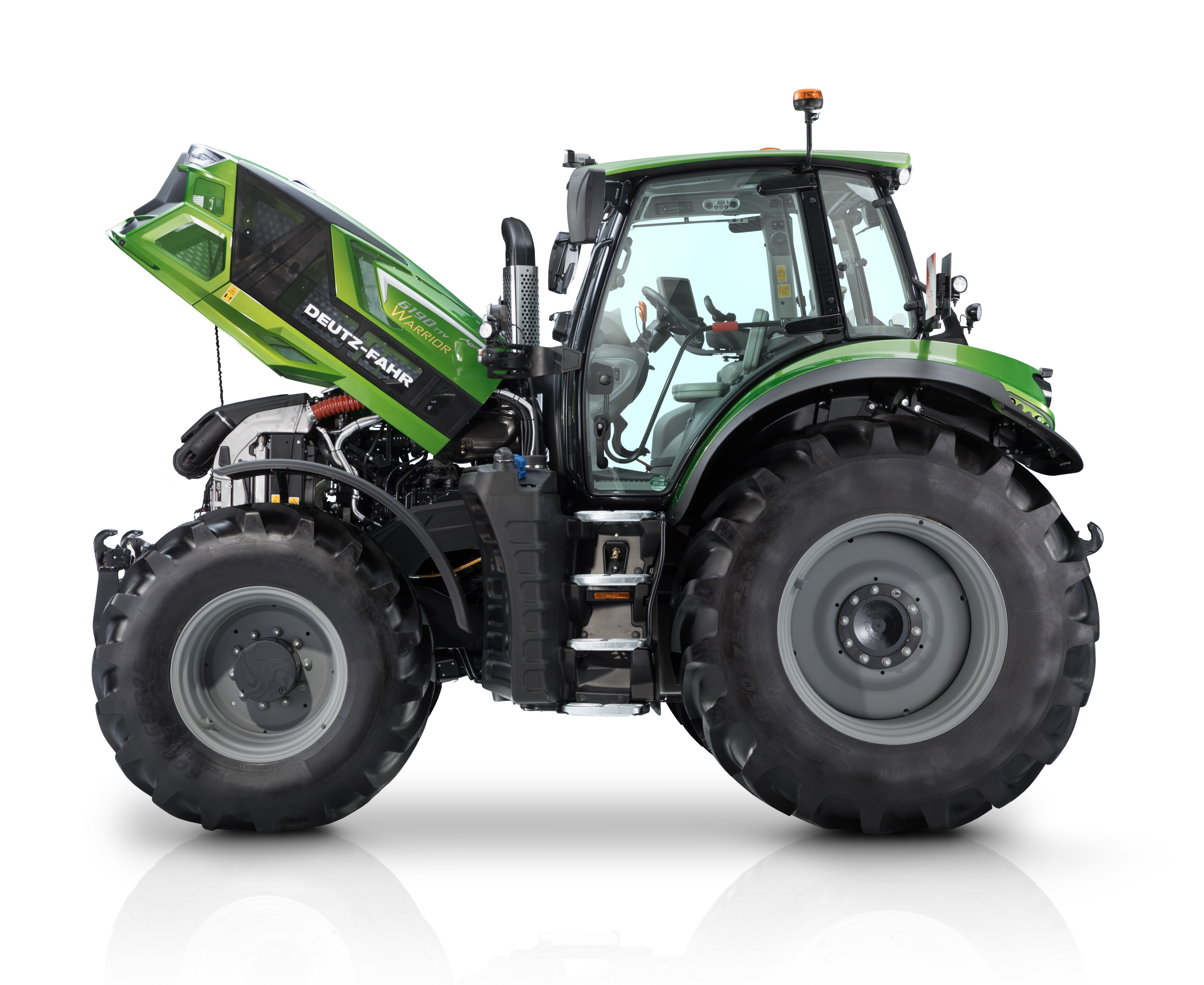

6 Pro-Series TTV Warrior

MATCH YOUR EFFICIENCY DEMANDS

The agricultural industry is highly diverse. Each individual enterprise has its own totally individual success strategy. Whether it's a large, medium or small company, a contractor or a local authority, they all have one thing in common: they need to be successful. Accordingly, tractor technology needs to 100% match their working profile. Ploughing, sowing, cultivating, transporting, harvesting crops, front loader work: each individual professional will decide how the tractor will be utilised, along with which specific features are required. DEUTZ-FAHR has developed the new 6 Series for this purpose: with 12 models ranging from 156 to 226 HP, two wheelbases, three transmission variants, two cabin types with different comfort levels and various other feature options, you can put together the best technology mix in this tractor class, and create your own, unique tractor. With the 6 Series, DEUTZ-FAHR has redefined the configurability concept.

Click here to see the RC transmission model

TTV TRANSMISSION – The Premier League of Comfort

The highlights:

• 3 driving modes
• Highly efficient and extremely comfortable
• Stepless speed control from 0 up to 50 Km/h
• Up to 4 Cruise speeds available
• (2 forward + 2 reverse)

Maximum productivity is the result of a precisely powered transmission and exact working speeds. The new 6 Series is fitted with stateof-the-art electronically controlled continuously variable TTV transmission. It is a solid concept that has been tried and tested over the years, now with new software for even better performance. Three driving modes are available to ensure a perfect fit for every working situation: manual, automatic and PTO. Overall, the speed range extends from 0.2 Km/h to 50 Km/h, according to market regulation.

The TTV transmission system is designed to be efficient at all speeds, providing a highly comfortable and extremely efficient system thanks to its four mechanical ranges which change automatically. Engine and transmission management is fully integrated, enhancing the functionality of the cruise settings. A trailer stretch mode increases safety in steep challenging conditions. Every single detail of the TTV transmission system has been designed to maximise the productivity of the 6 Series.

BEST PROSPECTS FOR YOUR WORK.

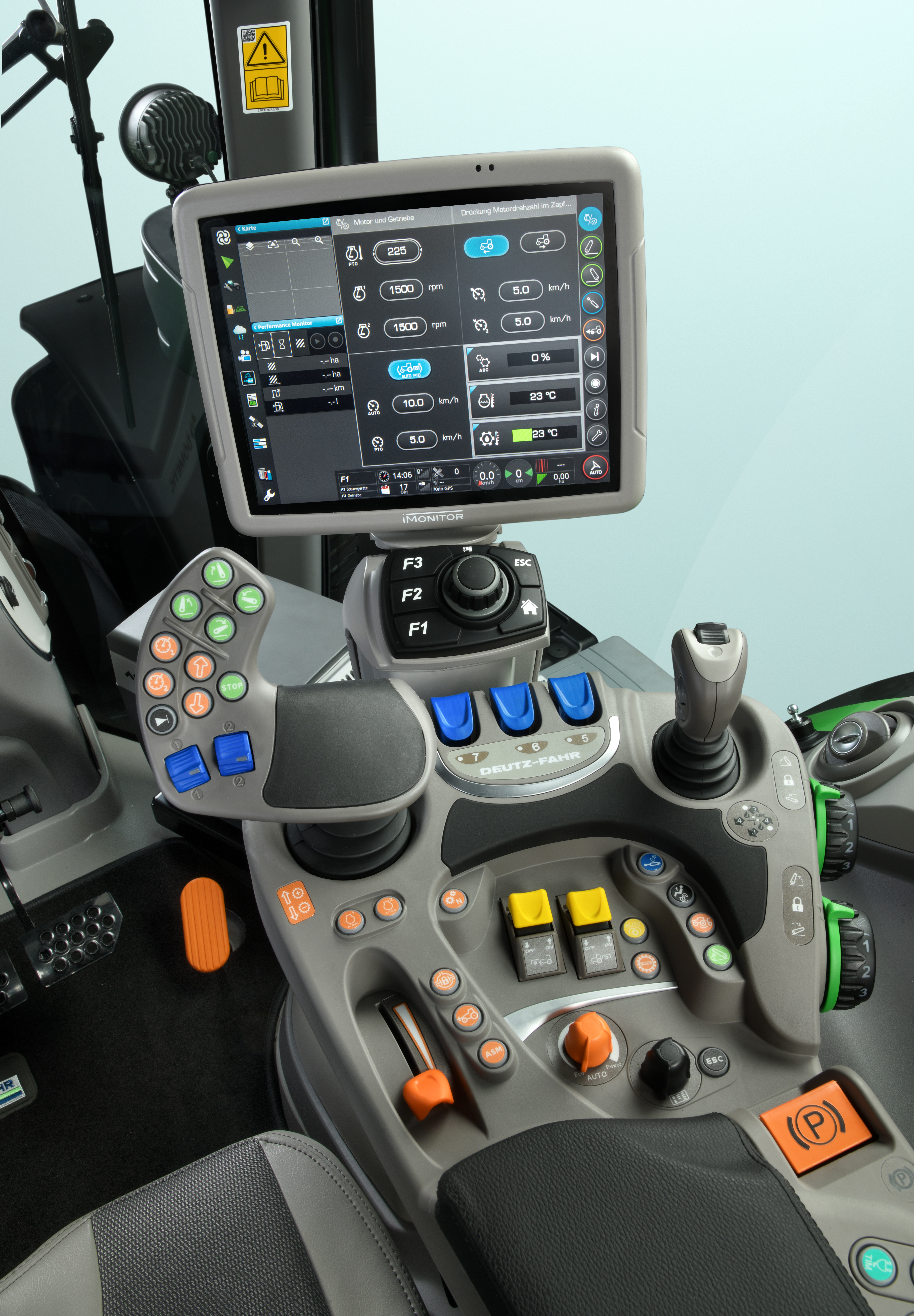

With four PTO speeds 540/540ECO/1000/1000ECO at the rear and 1000 or 1000ECO at the front, all work can be carried out very efficiently. Thanks to the reduced engine speed characteristics, coupled with ECO power take-off technology, fuel consumption is significantly reduced. The proportionally controlled PTO prevents sharp start-ups and protects transmission components. The new InfoCentrePro provides clear, easily understandable information about hydraulic and PTO functions. All hydraulic and PTO functions can be easily set and controlled from the right console or armrest in the cab.

REAR PTO

FRONT PTO

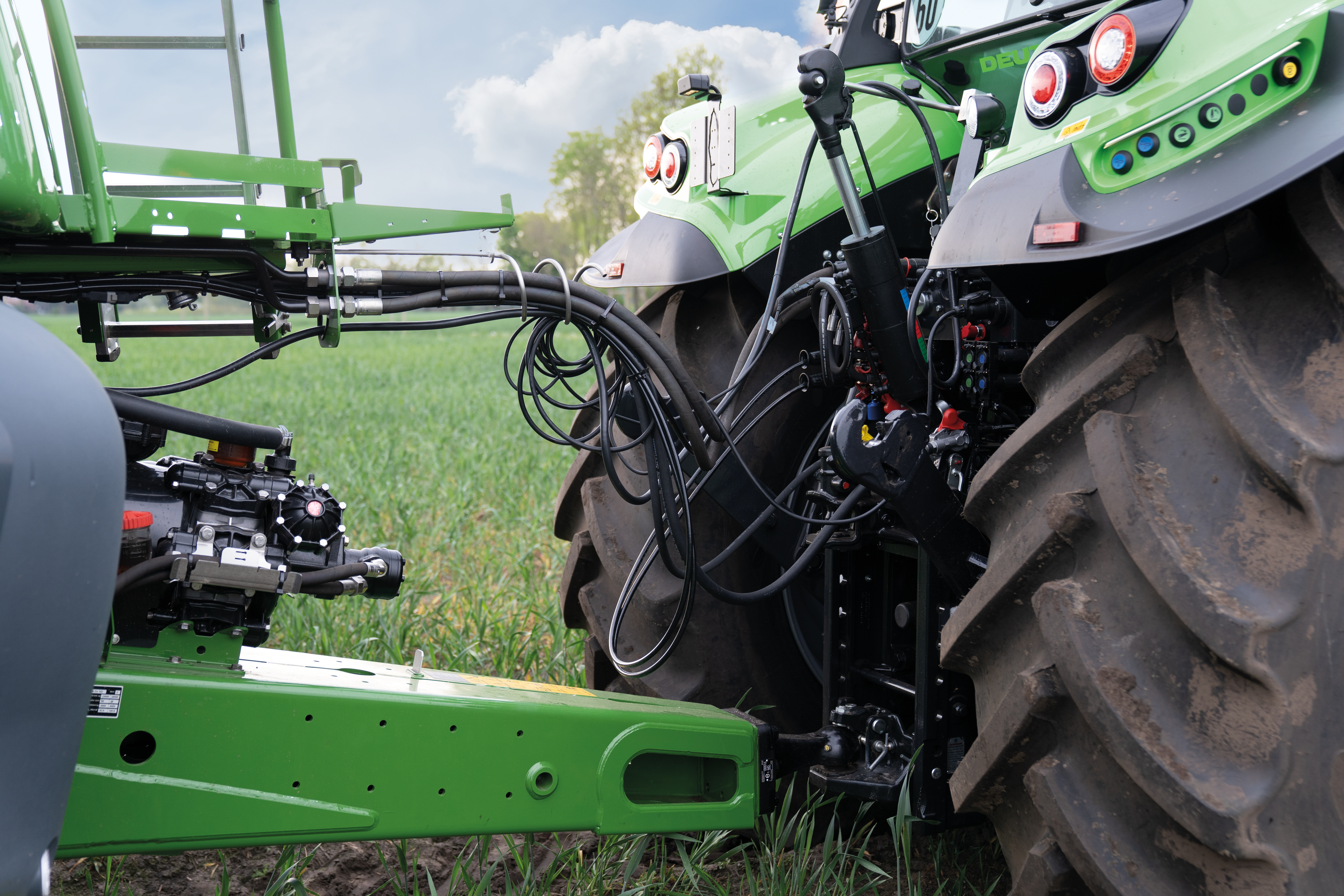

PREPARED FOR A WIDE RANGE OF APPLICATIONS.

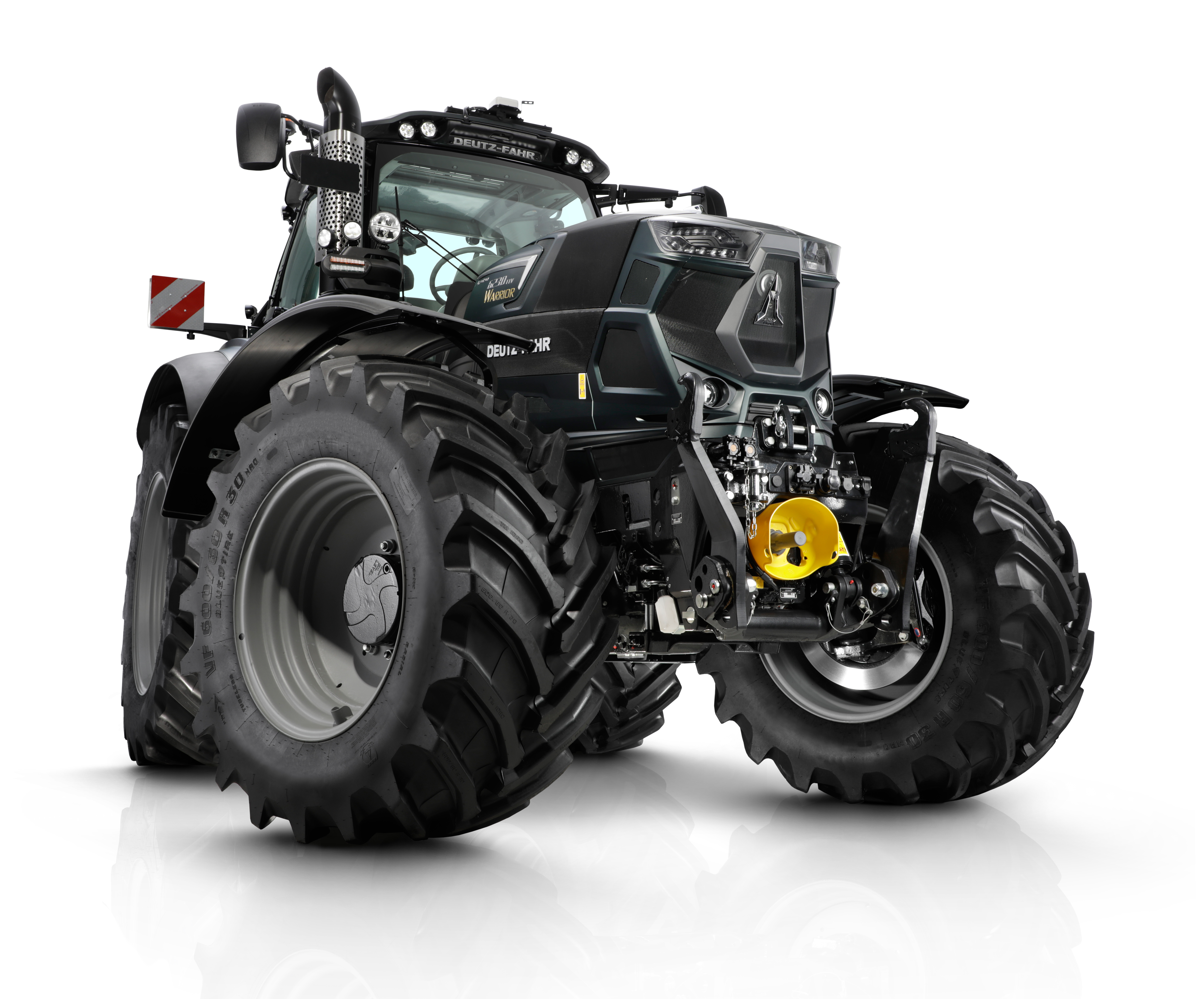

The attachment points of the new 6 Series are available with a wide range of feature options. For hydraulics, you can choose between mechanical and electro-hydraulic controls, up to five hydraulic valves in the rear and two in the front, and a hydraulic pump output of up to 170 L/min, with a rear lifting capacity of up to 10.000 kg. The models with the MaxiVision 2 cab have all the hydraulic inputs proportionally controlled, for broader control of implements. A separate oil tank ensures an ample oil supply for the TTV models. The main hydraulics are offered with a Load sensing system or an open centre constant flow pump. The new front linkage system of the 6 Series TTV range is equipped with a position control function, providing greater control across a broader range of implements. The new front support with the new integrated front lift is designed to match the front suspension, this solution provides a compact layout for maximum steering capability, offering up to 5.480 kg lift with up to 2 dedicated front valves. The front mounting area also features an integrated ISOBUS terminal.

NO COMPROMISE BETWEEN SAFETY AND DRIVING COMFORT.

The new front axle with suspension and the braking system of the 6 Series are unique in this performance class. The front axle is now fitted with double-acting hydraulic cylinders and a longer stroke, significantly increasing the damping effect, which is electronically controlled. Depending on the brake intensity and driving speed, two suspension levels are activated – the AntiDive and AntiRise system, or the complete suspension system in the field and on the road; the suspension system can also be locked. The 6 Series TTV is the only standard tractor that is fitted with high-performance dry disc brakes on the front axle (6205 and 6215 TTV), with the additional Booster brake system ensuring maximum braking performance with the lightest pedal pressure. No other standard tractor offers a front axle, dry disc brakes combined with the booster brake system.

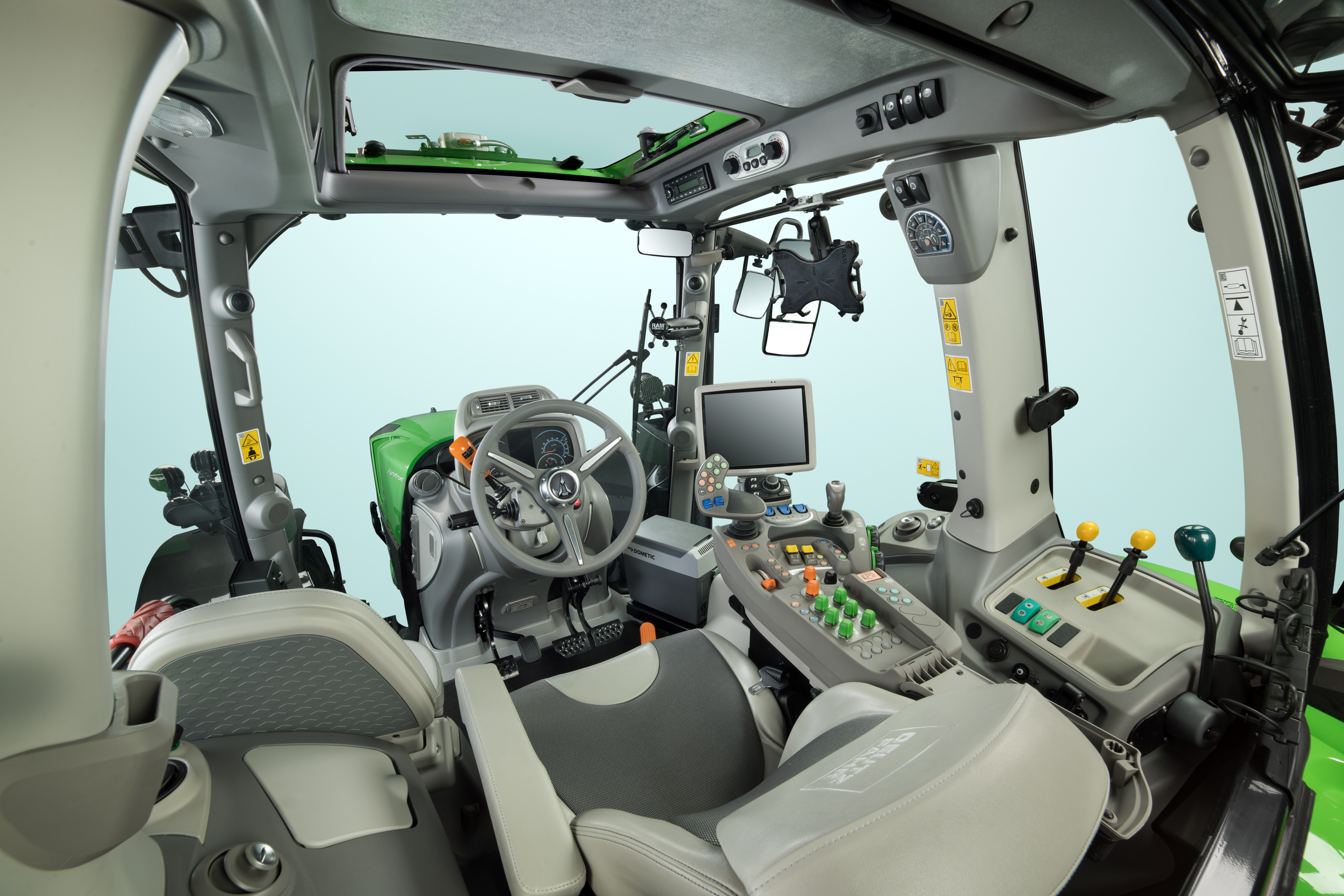

COUNTLESS CABIN COMFORT OPTIONS: THE CHOICE IS YOURS.

In general, the higher the driving and operating comfort, the more productive the work. And the more relaxed the work, the better the results. For this reason, all 6 Series models offer first-class cabin comfort. Unique in the market: You can choose from a multitude of technology, equipment, specification and comfort variants. It's completely up to you. Based on the intended purpose of the tractor, on the driver's demands - there is a solution for all budgets. Whatever the requirements, the new 6 Series has you on the right track. MaxiVision and MaxiVision 2 cabs with different operating comfort levels and technological solutions, from simple mechanical manual controls to the most advanced electronic joystick. You can choose between three escape hatch options – a simple green sliding roof, a glass roof with UV absorption or the FOPS safety version for optimal views while using the front loader. Whatever you choose, the new 6 Series will meet your personal demands.
